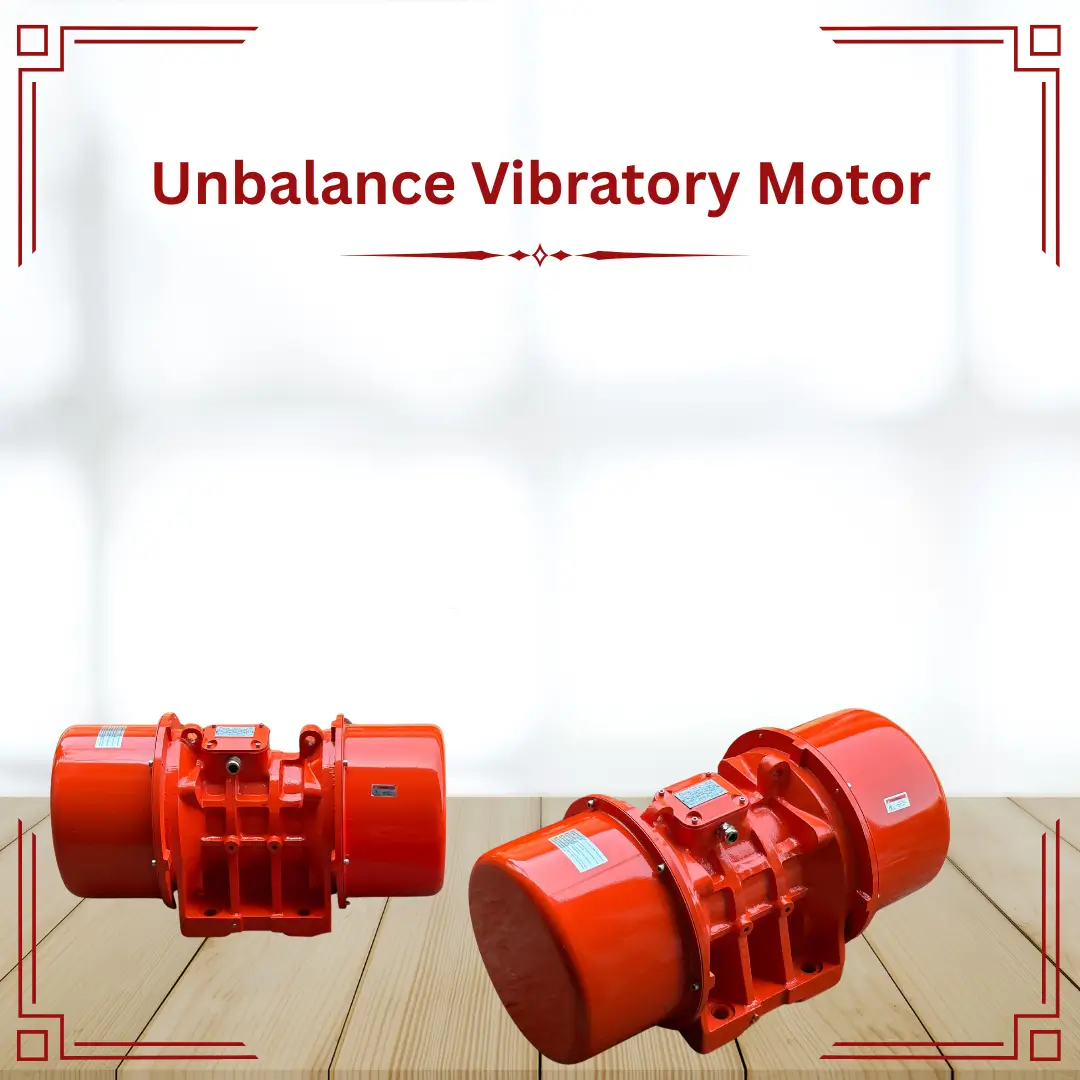

Unbalance Vibratory Motor
An unbalance vibratory motor is a specialized electromechanical device designed to generate vibratory motion through unbalanced masses attached to its shaft. As the shaft rotates, centrifugal force is produced, creating vibrations used for material handling, screening, compaction, and other industrial applications. These motors are compact, durable, and efficient, making them ideal for vibratory feeders, screens, and conveyors. Their amplitude and frequency can be adjusted by modifying the unbalanced weights, allowing precise control over vibration intensity.
| Specification | Details |
|---|---|
| Centrifugal Force Range | 0 – 12,000 Kgs/Meter |
| Operating Voltages | Standard: 380/440V, 50/60 Hz Others on request |
| Ambient Temperature | 25°C to 80°C (Other ranges on request) |
| Insulation Class | F |
| Operation | Continuous service at maximum indicated centrifugal force and electric power rating |
| Fixing | Can be mounted in all positions without limitations |
| Terminal Box | Sized for easy electrical connections |
| Bearings | Upper and lower bearings designed to support the relative load |
| Drive Shaft | Oversized, treated steel to withstand high stress |

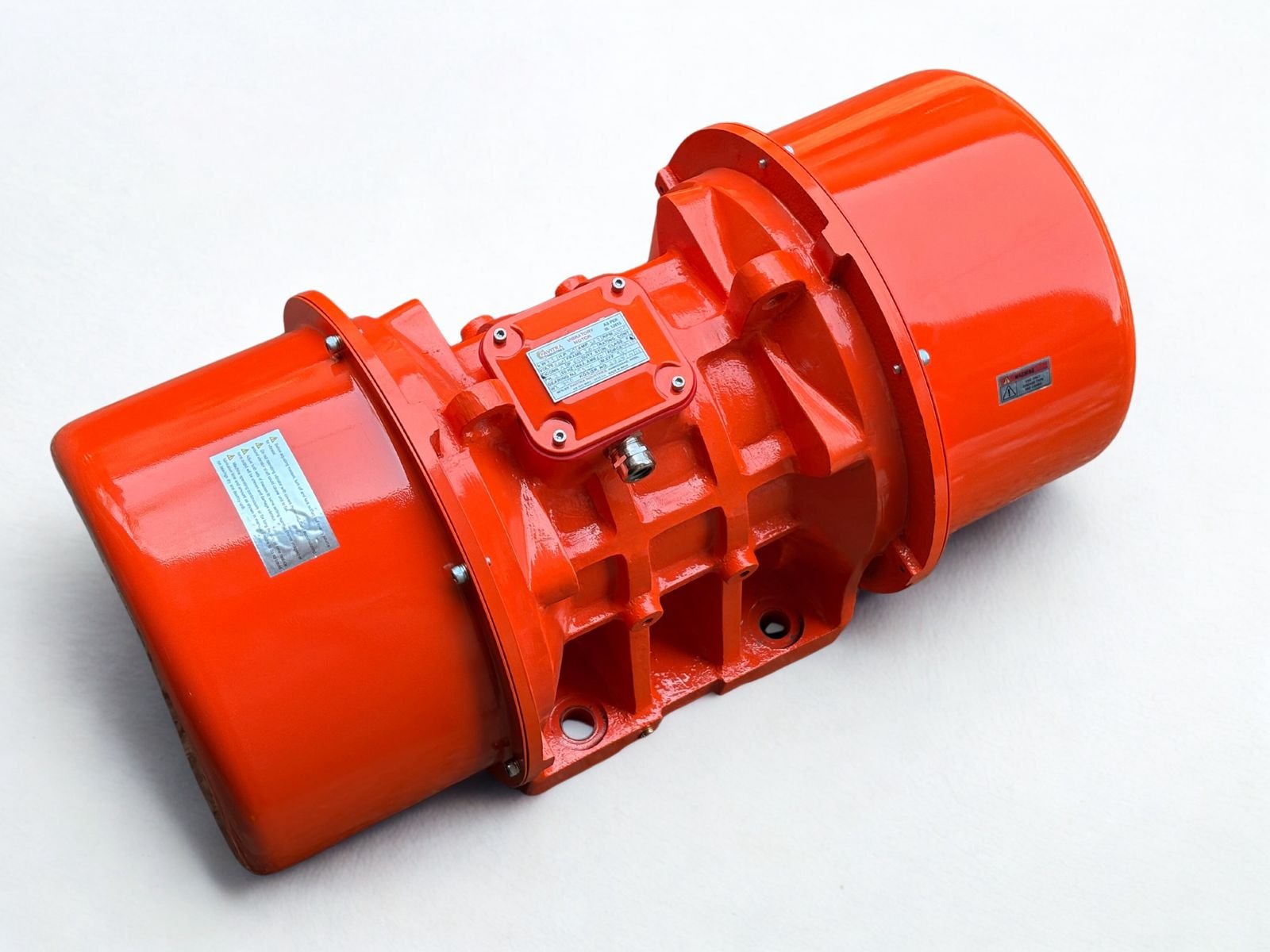

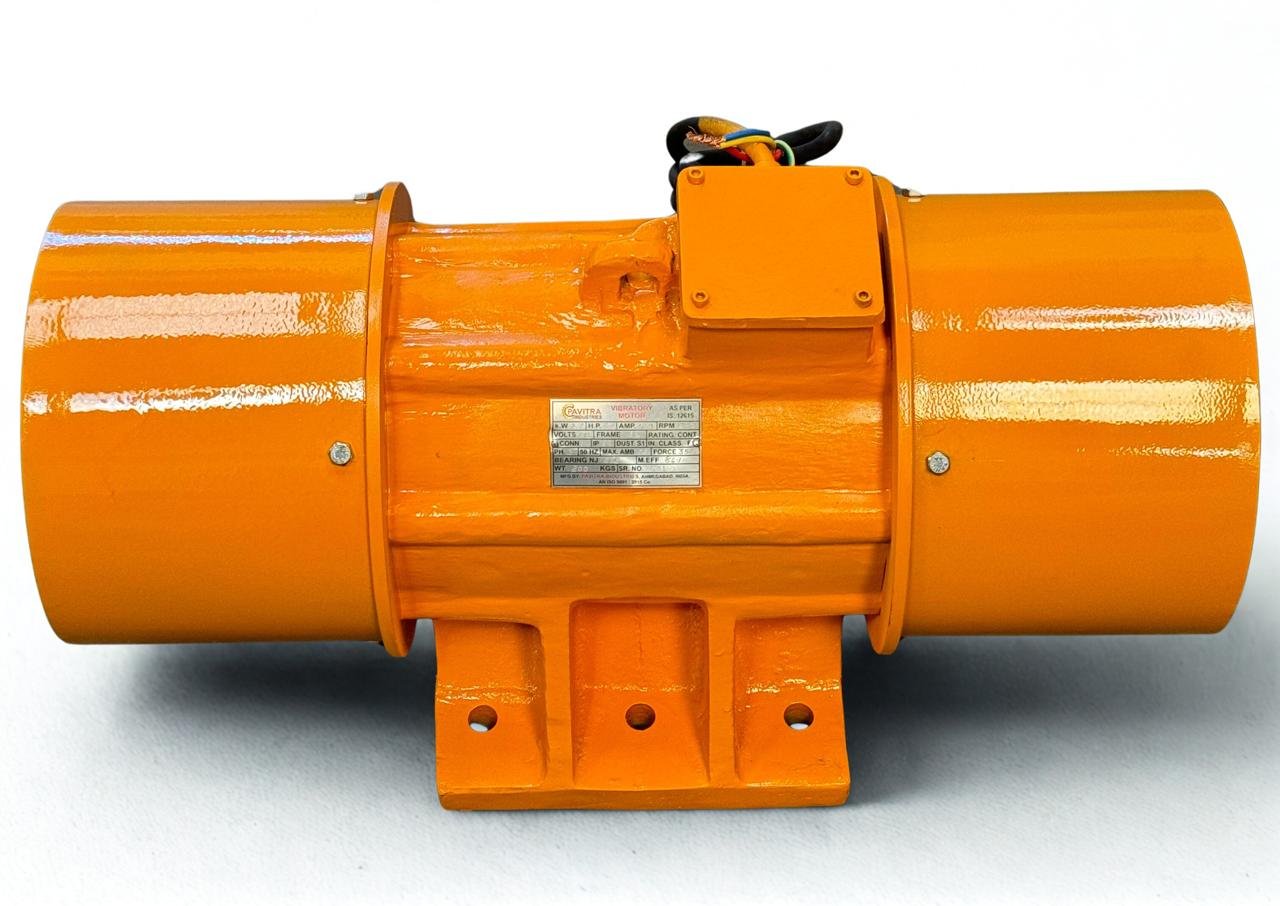

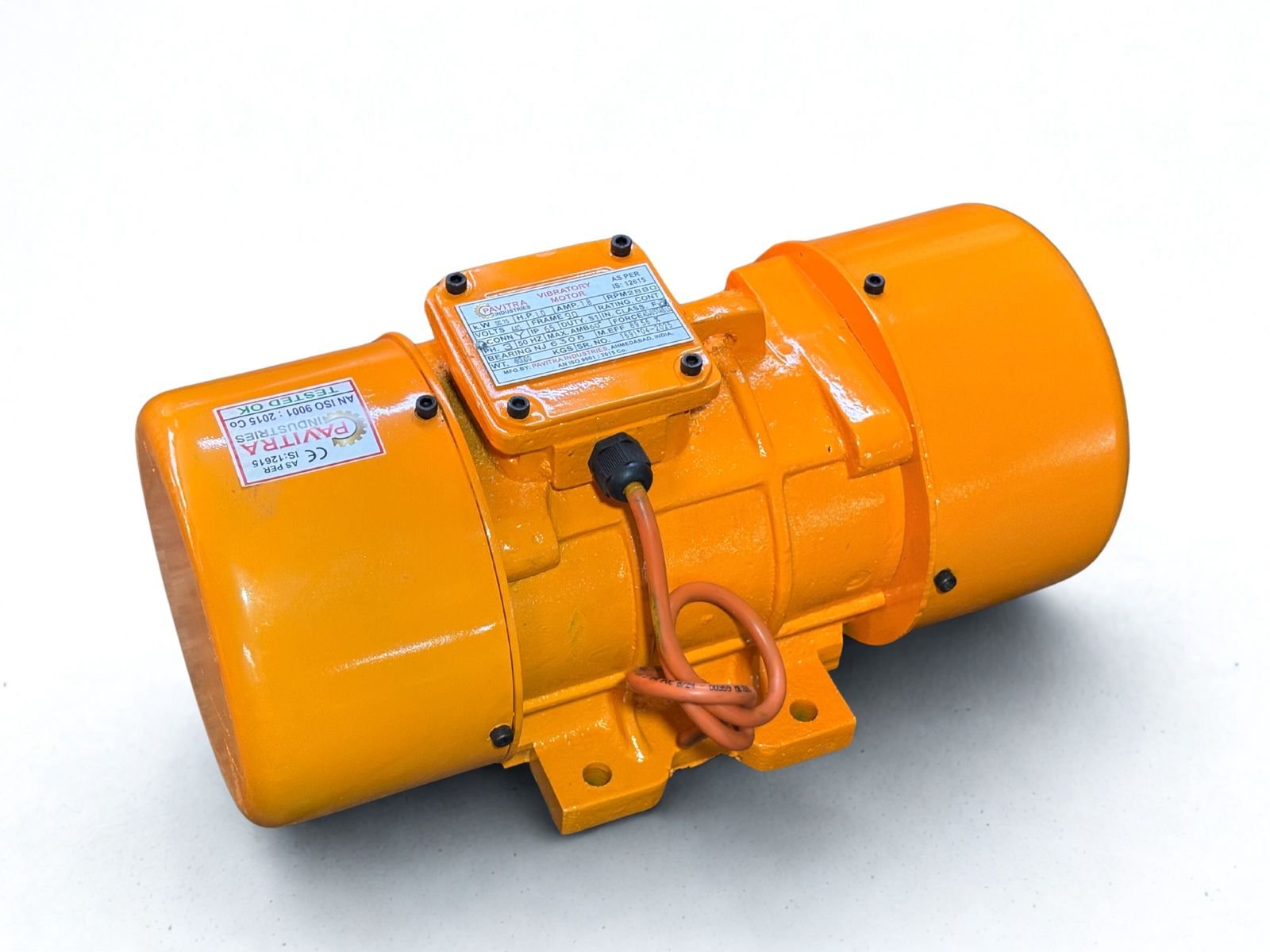

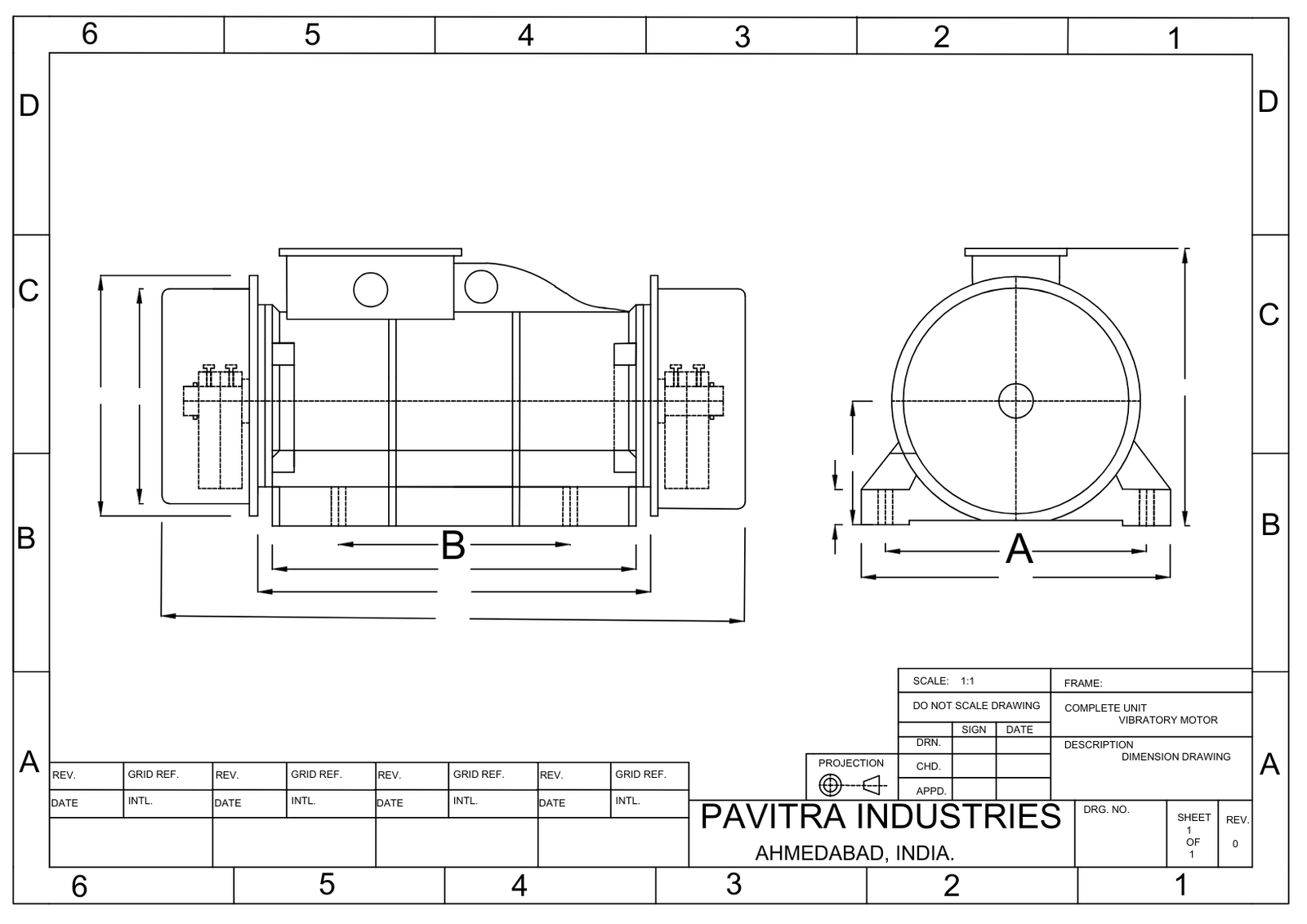

Frame & Mounting Table
| No | Frame | HP | Hole Center (A × B) | Motor Size (L × W × H) | Drill Size |
|---|---|---|---|---|---|
| 1 | 63 | 0.25 | 85 × 85 | 270 × 150 × 170 | 4 – 14 mm |
| 2 | 71 | 0.5 | 120 × 85 | 320 × 180 × 195 | 4 – 14 mm |
| 3 | 80 | 1.0 | 140 × 108 | 360 × 200 × 215 | 4 – 14 mm |
| 4 | 90 | 2.0 | 152 × 130 | 460 × 220 × 270 | 4 – 18 mm |
| 5 | 100 | 3.0 | 200 × 130 | 540 × 260 × 320 | 6 – 22 mm |
| 6 | 112 | 5.0 | 210 × 170 | 610 × 270 × 355 | 6 – 22 mm |
| 7 | 132 | 7.5 | 280 × 200 | 650 × 350 × 425 | 6 – 22 mm |
| 8 | 160 | 10 | 395 × 325 | 720 × 380 × 450 | 6 – 40 mm |
Key Advantages
- Versatile for material handling, sorting, and sieving applications.
- Corrosion-resistant for longer operational life.
- Quiet operation for noise-sensitive environments.
- Easy installation with minimal downtime.

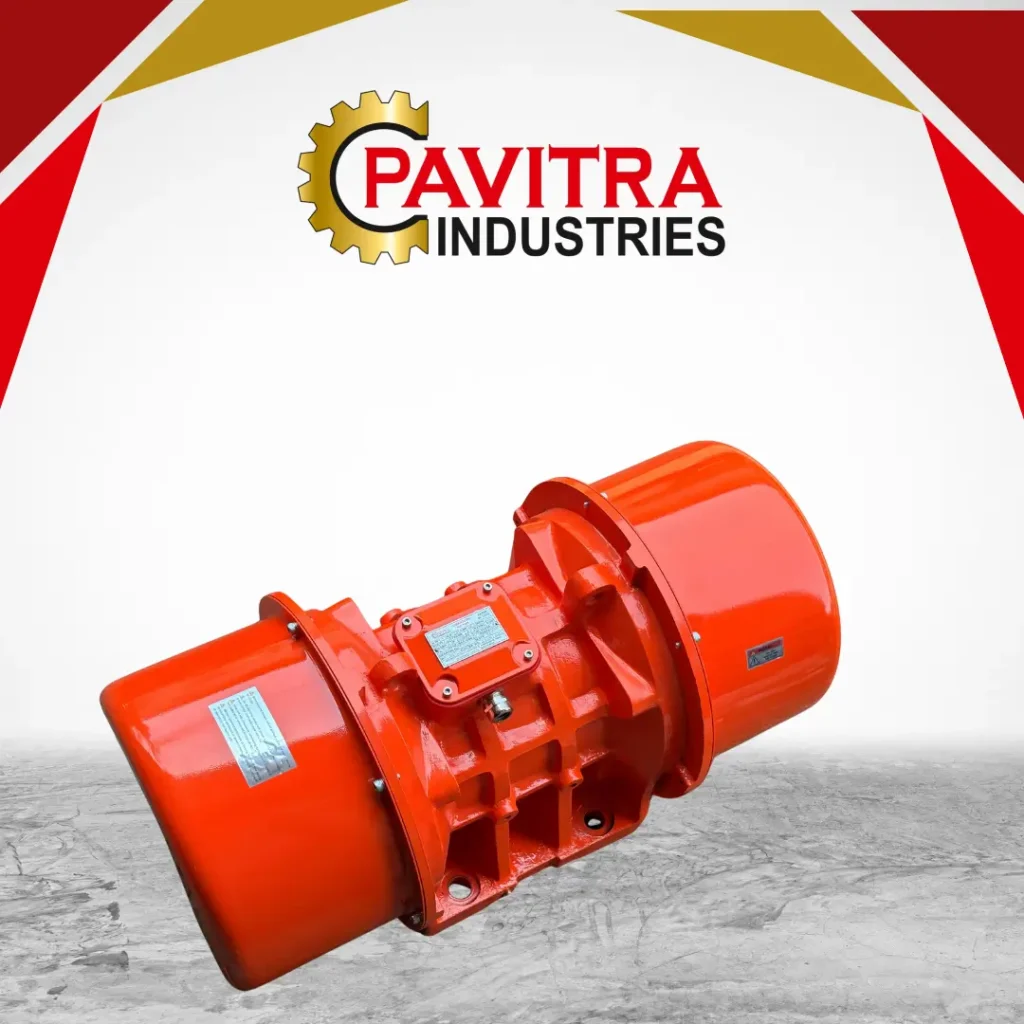

Advantages of Our Unbalance Vibratory Motors
Energy Efficient
Delivers high performance with low power consumption
Durable Construction
Designed to perform in harsh industrial conditions
Low Maintenance
Built for long-lasting, reliable operation with minimal upkeep
Customizable Vibration
Adjustable unbalanced weights for precision control
Compact Design
Ideal for confined or limited space installations
Easy Installation
Simple setup, suitable for all positions
Applications
- Material Handling – Vibratory Feeders, Conveyors
- Sieving & Screening – Sorting and separating materials
- Compaction – Powder, concrete, etc.
- Separation Processes – Industrial use in chemical & food industries
