Three Phase Ac Induction Motor
Reliable. Efficient. Built for Performance.

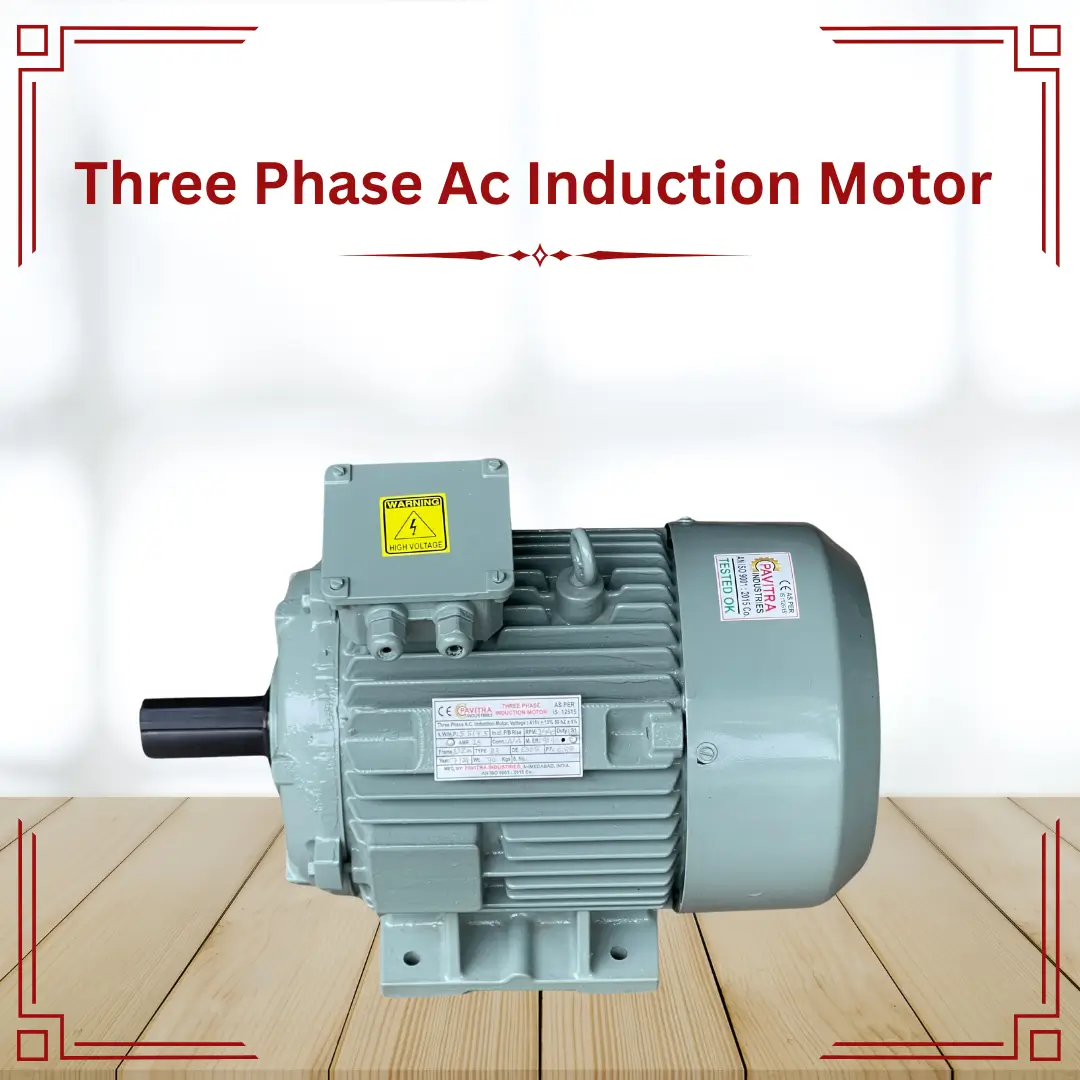

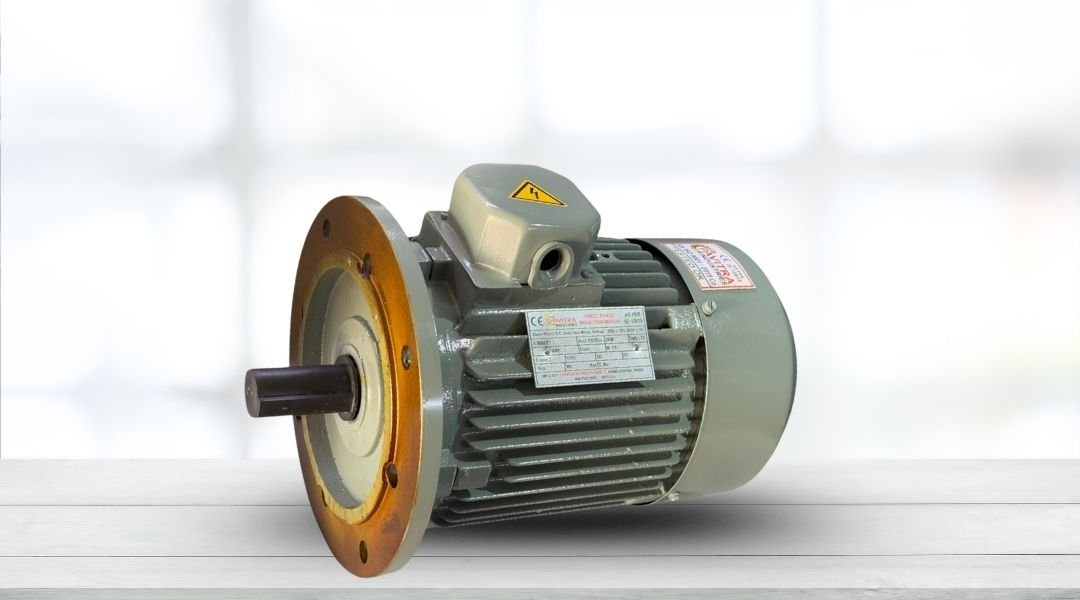

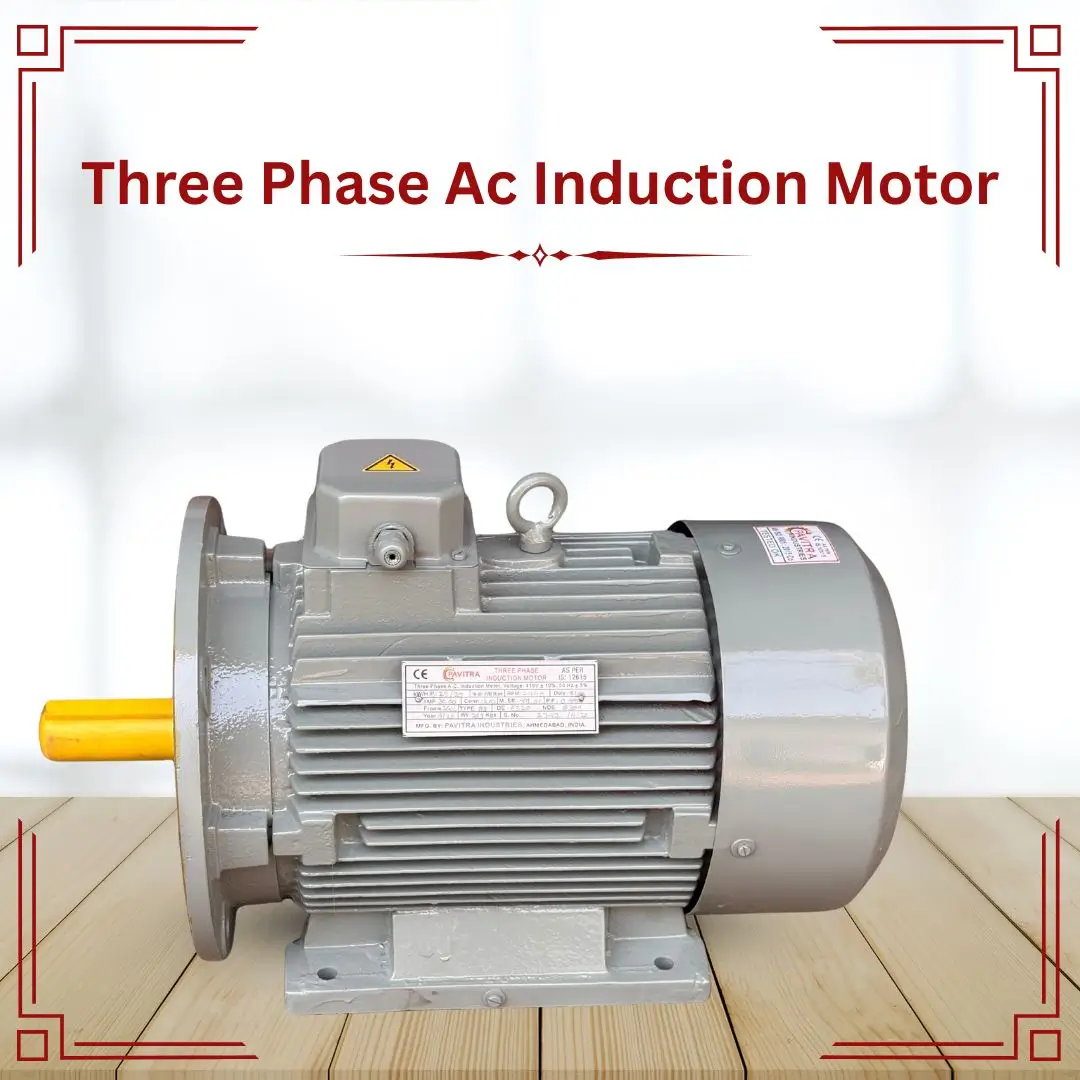

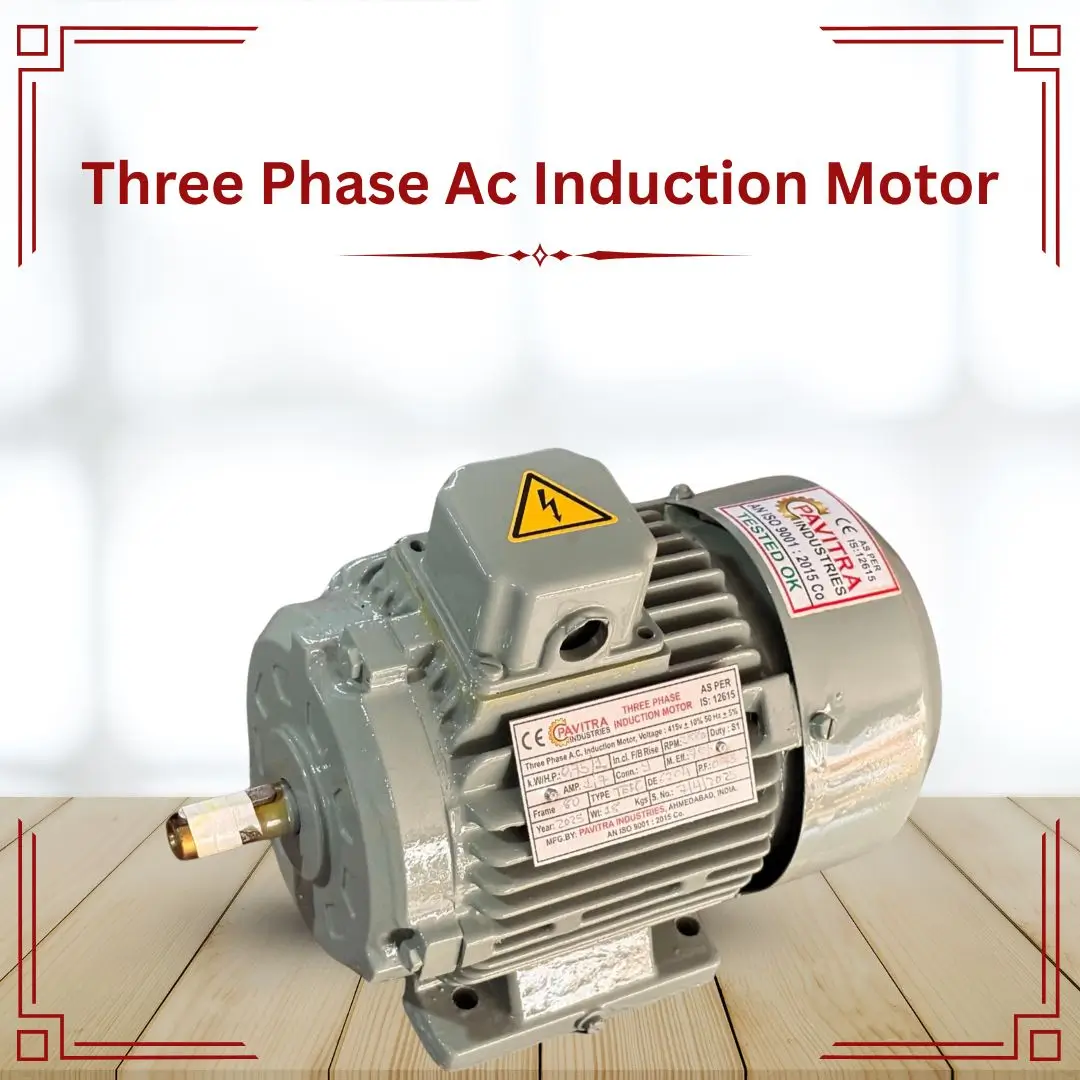

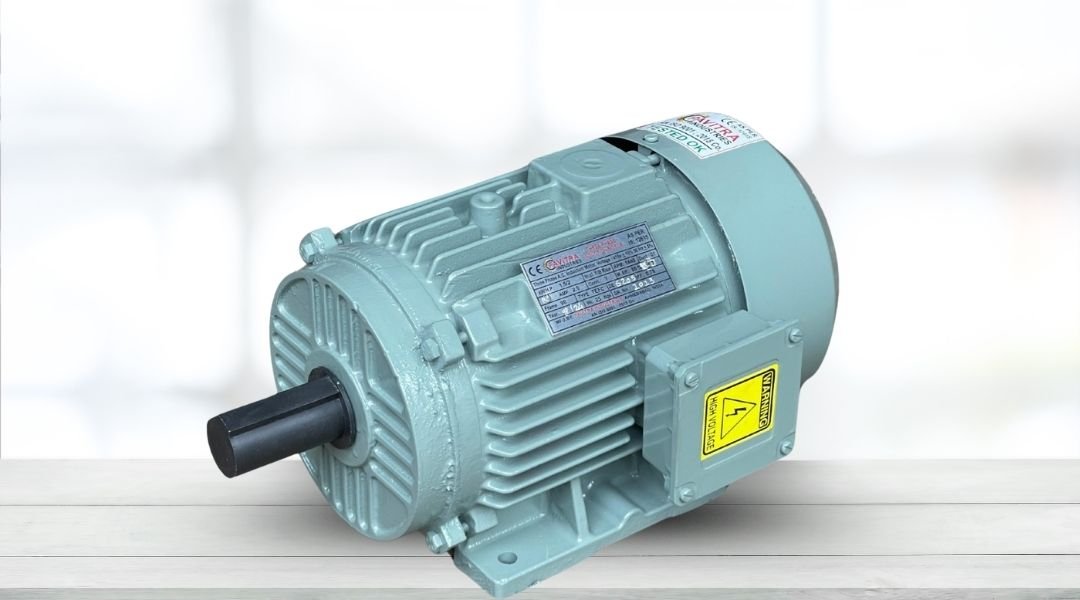

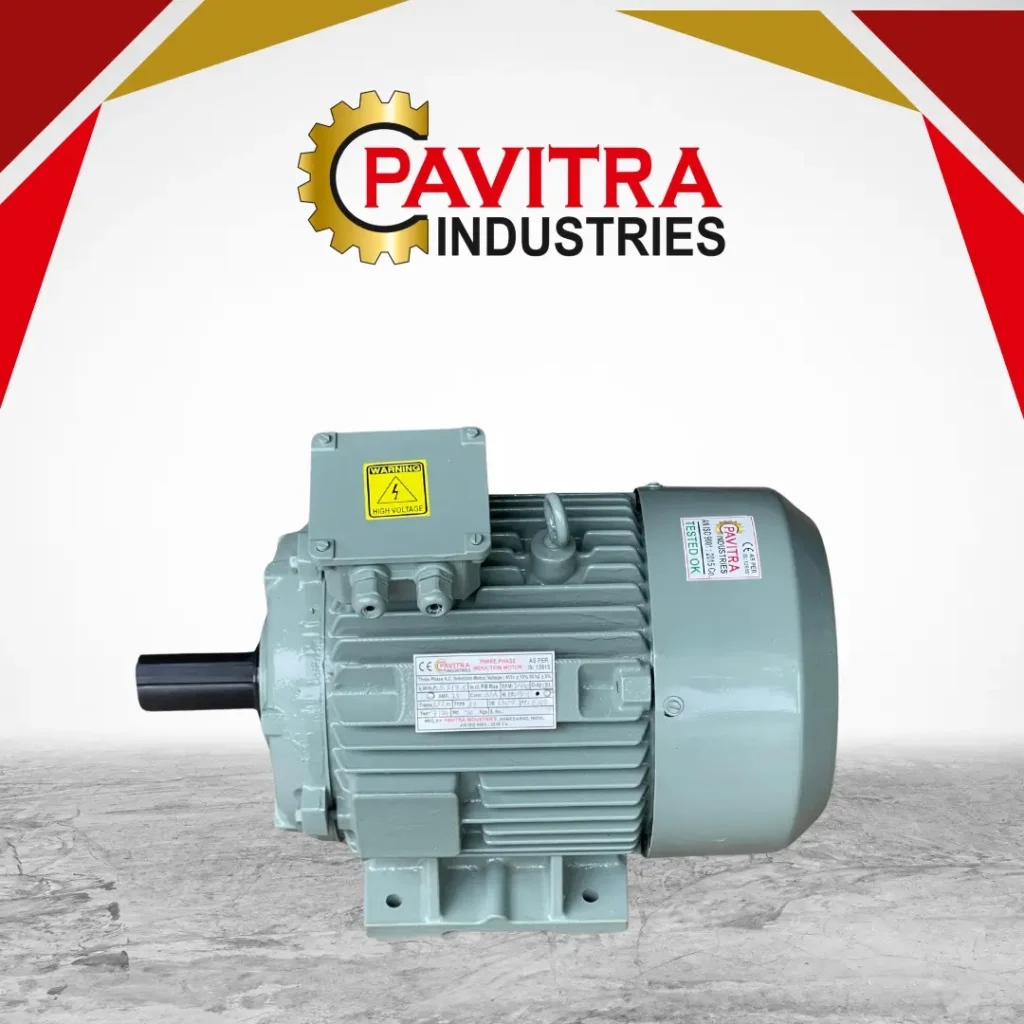

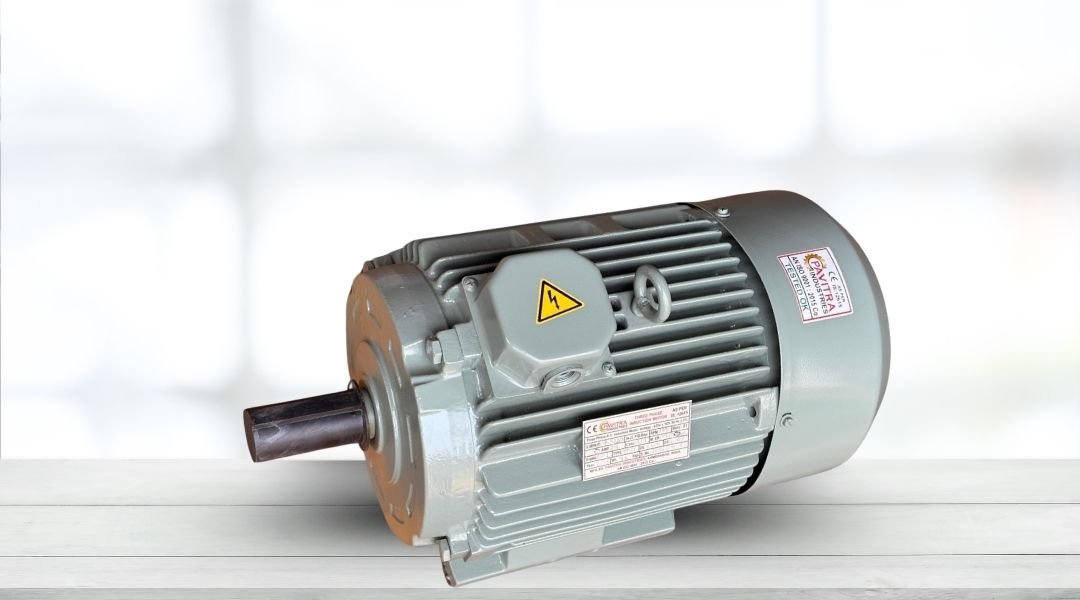

At Pavitra Industries, we manufacture high-performance three-phase squirrel cage induction motors designed
for demanding industrial environments.
Available in a wide power range from 0.25 HP to 75 HP, our motors combine durability, energy efficiency, and
precision engineering.
Optional Features
| Specification | Details |
|---|---|
| Power Range | 0.25 HP to 75 HP (0.18 kW to 55 kW) |
| Voltage | 415V ±10%, 3 Phase, 50 Hz |
| Custom Voltages | 220V / 380V / 460V / 525V (On Request) |
| Speeds (RPM) | 750 / 1000 / 1500 / 3000 |
| Insulation Class | F (Standard), H (Optional) |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Protection Class | IP55 (Standard), IP65 (Optional) |
| Duty Cycle | S1 (Continuous Duty) |
| Frame Sizes | 63 to 225M/L |
| Mounting Options | B3 (Foot), B5 (Flange), B14 (Face), Combination |
Key Features
- High Efficiency (IE2 / IE3 Optional)
- Smooth & Silent Operation
- Minimal Maintenance Design
- High Starting Torque & Performance
- Compatible with VFD Drives
- Robust Design for Industrial Use
- Custom Shaft / Voltage / Mountings Available
Applications
- Material Handling Equipment
- Pumps, Blowers, Compressors
- Machine Tools
- Conveyor Systems
- Textile & Printing Machinery
- Agricultural & Irrigation Equipment
Need Help Selecting the Right Motor?
We’ll help you choose the best-fit AC brake motor for your industrial application.
