- Needle Vibrator Motors

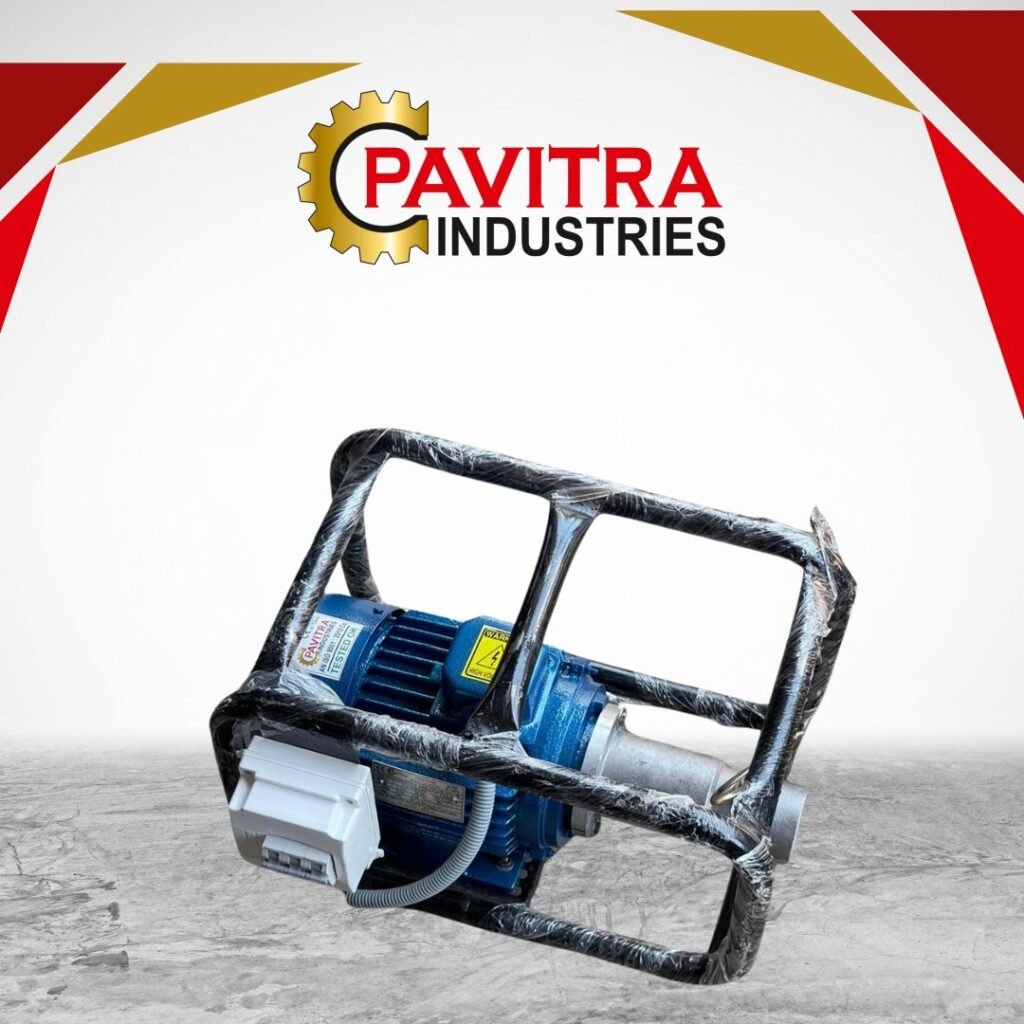

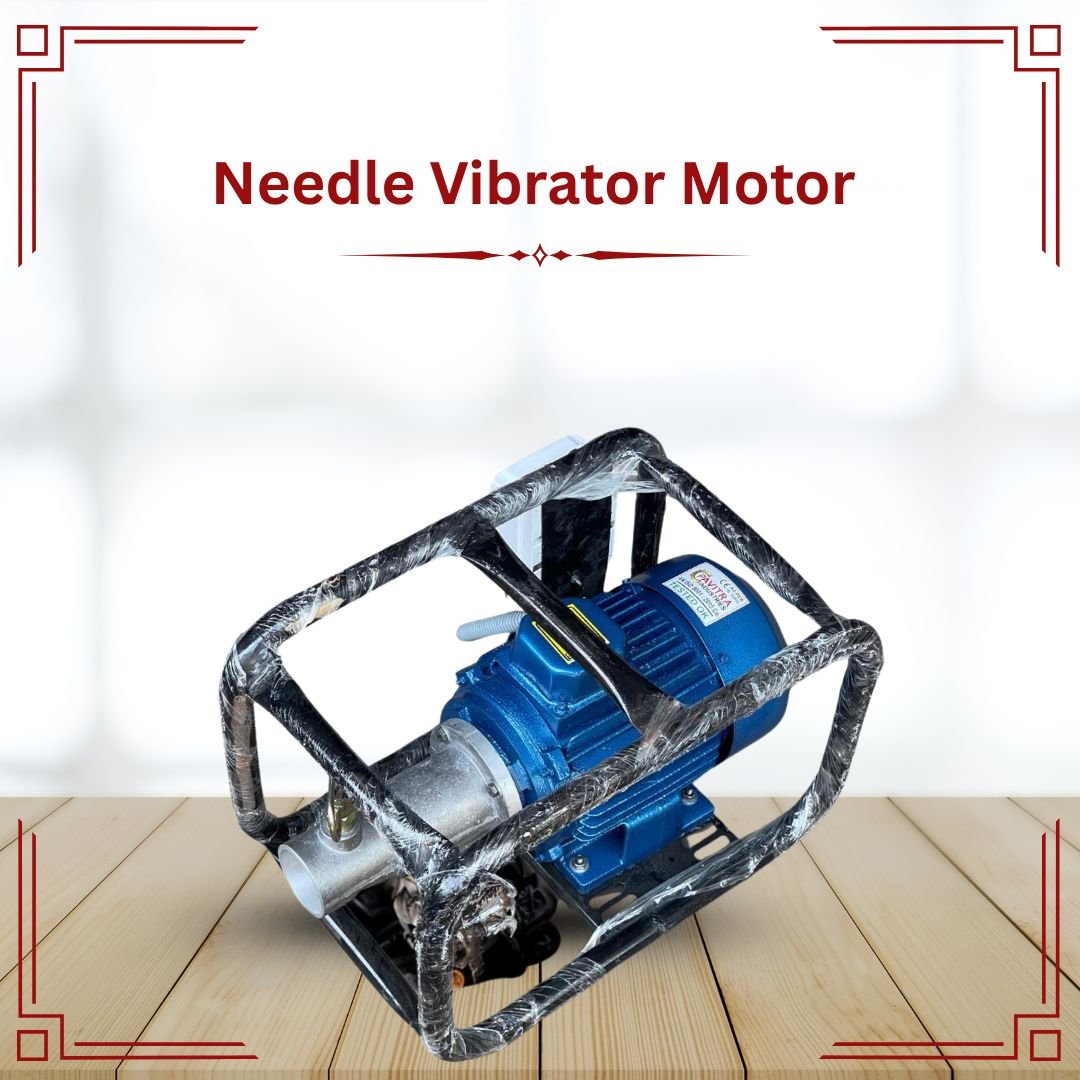

Needle Vibrator Motor (1 HP to 3 HP)
Types:
Single Phase & Three Phase
Applications:
Concrete slabs, columns, beams, footings, foundations, precast elements
Technical Specifications
| Model No. | Power | Phase | Voltage | Frequency | RPM | Needle Dia. | Shaft Length | Weight |
|---|---|---|---|---|---|---|---|---|
| PNV-1SP | 1 HP (0.75 kW) | Single Phase | 230V ±10% | 50 Hz | 2800 | 38 / 40 mm | 4m / 6m | 12–15 kg |
| PNV-1TP | 1 HP (0.75 kW) | Three Phase | 415V ±10% | 50 Hz | 2800 | 38 / 40 mm | 4m / 6m | 11–14 kg |
| PNV-2SP | 2 HP (1.5 kW) | Single Phase | 230V ±10% | 50 Hz | 2800 | 50 / 60 mm | 4m / 6m | 20–25 kg |
| PNV-2TP | 2 HP (1.5 kW) | Three Phase | 415V ±10% | 50 Hz | 2800 | 50 / 60 mm | 4m / 6m | 18–23 kg |
| PNV-3SP | 3 HP (2.2 kW) | Single Phase | 230V ±10% | 50 Hz | 2800 | 60 mm | 4m / 6m | 28–35 kg |
| PNV-3TP | 3 HP (2.2 kW) | Three Phase | 415V ±10% | 50 Hz | 2800 | 60 mm | 4m / 6m / 8m | 25–32 kg |
Features
- Efficient high-speed vibration for superior compaction
- Rugged body with IP55 protection
- Low maintenance with flexible shaft and sealed motor
- Thermal protection and safe operation
Accessories
- Needle Heads (25, 38, 50, 60 mm)
- Flexible Shafts with coupler
- Mounting tripods, cable guards (optional)
- Contact Pavitra Industries for customized solutions
Applications
- RCC slabs and beams
- Precast concrete elements
- Bridges, dams, roads, and foundations
