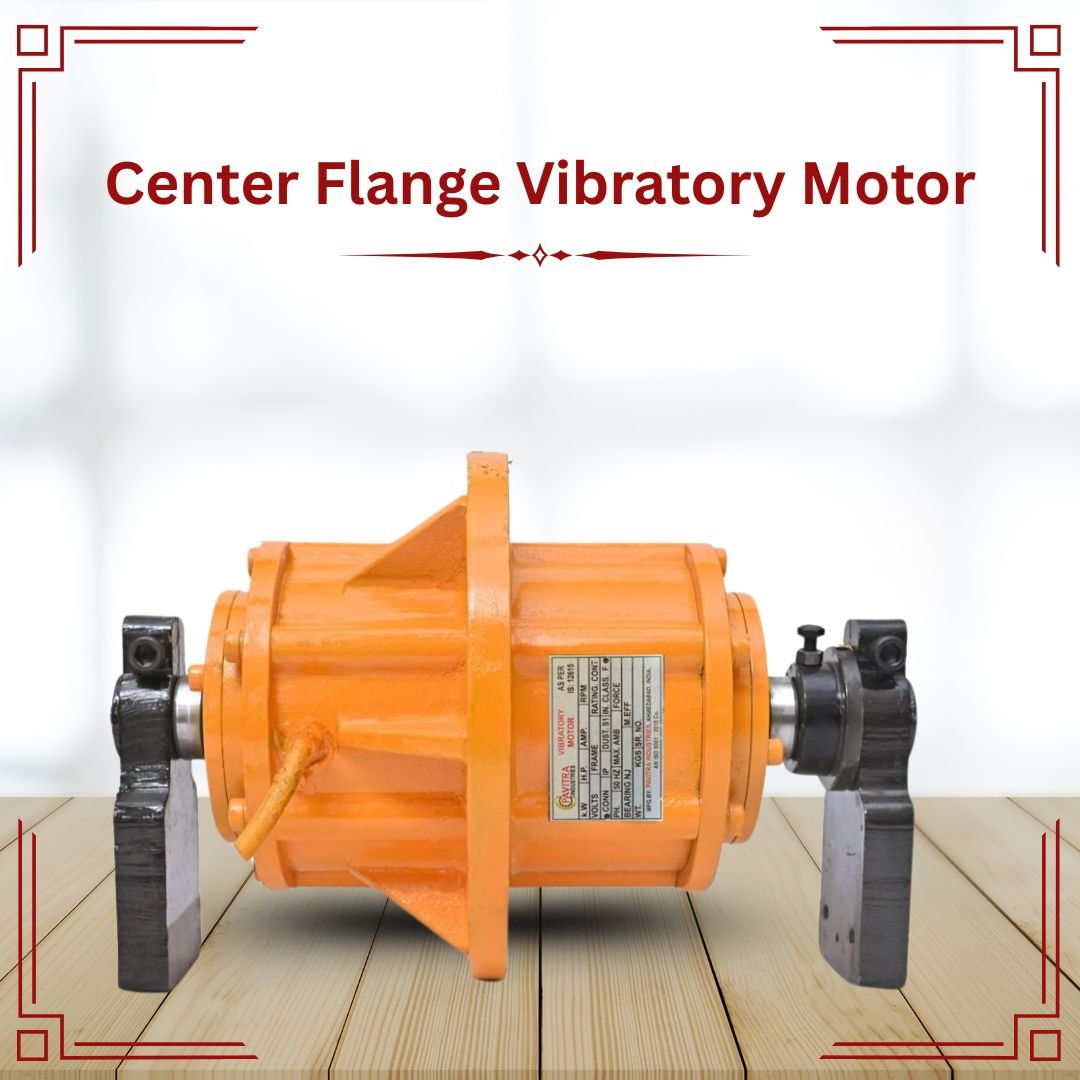

Center Flange Vibratory Motor
At Pavitra Industries, we specialize in manufacturing premium-quality Center Flange Gyro Motors—built for performance, durability, and energy efficiency. Designed to serve diverse industries like material handling, food processing, mining, pharmaceuticals, and construction, our motors guarantee long-lasting performance with minimal maintenance.
What is a Center Flange Gyro Motor?
A Center Flange Gyro Motor is a high-performance vibratory motor, widely used in machines such as vibrating screens, feeders, conveyors, and separators. The center flange mounting provides stable installation and efficient vibration transmission—making it ideal for continuous industrial operations.

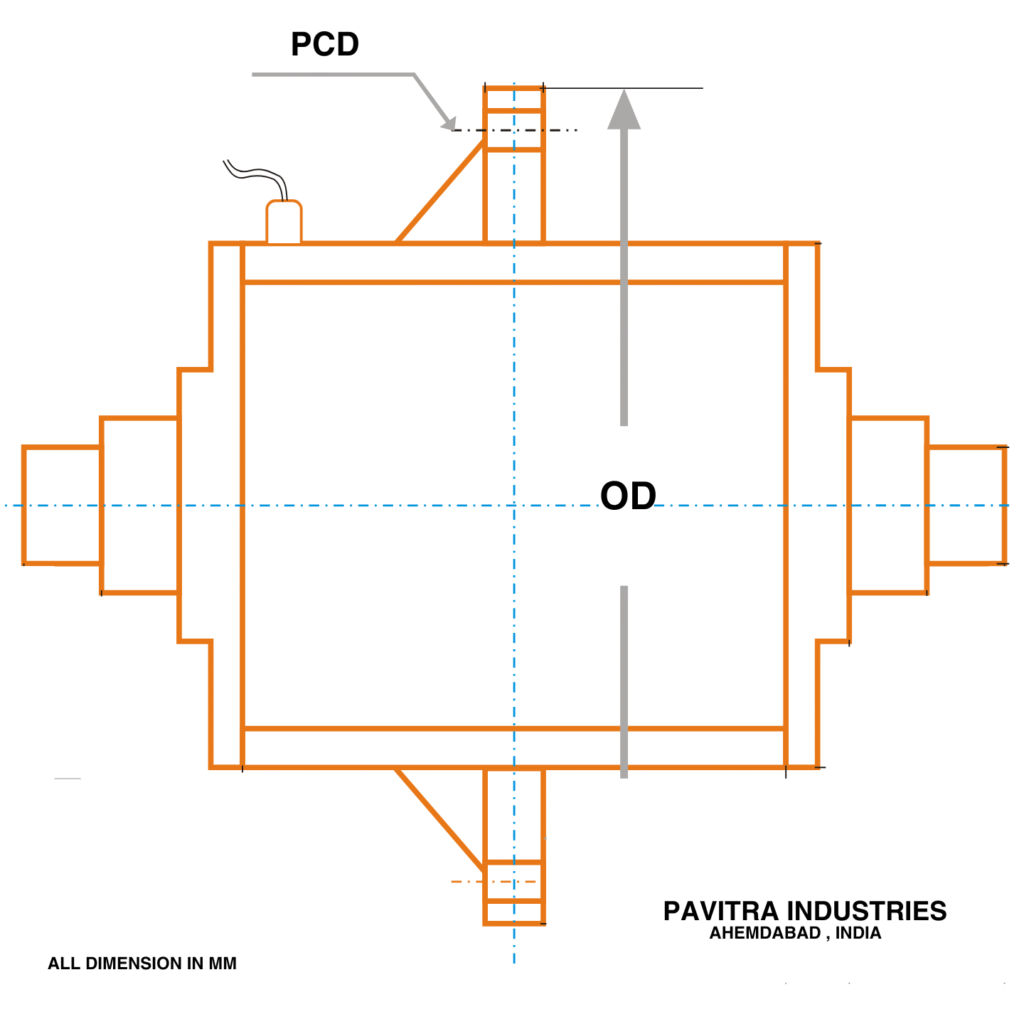

Mechanical Dimensions (Selected Frames)
| No | Frame | HP | PCD (mm) | OD (mm) | Motor Length (mm) | No. of Holes (Ø) |
|---|---|---|---|---|---|---|
| 1 | 63 | 0.25 | 160 | 180 | 210 | 6 × 14 mm |
| 2 | 71 | 0.5 | 180 | 225 | 270 | 6 × 14 mm |
| 3 | 80 | 1.10 | 230 | 270 | 370 | 6 × 15 mm |
| 4 | 90 | 2.0 | 230 | 270 | 370 | 6 × 22 mm |
| 5 | 100 | 3.0 | 270 | 300 | 370 | 6 × 22 mm |
| 6 | 112 | 5.0 | 300 | 350 | 440 | 6 × 27 mm |
| 7 | 132 | 7.5 | 360 | 410 | 510 | 6 × 27 mm |
| 8 | 160 | 10 | 400 | 450 | 550 | 6 × 27 mm |
Performance Parameters
- Centrifugal Force Range: 0–12,000 Kgs/Meter
- Operating Voltage: 380/440V, 50/60Hz (custom options available)
- Ambient Temperature: 25°C to 80°C (others available on request)
- Insulation Class: F
- Operation Mode: Continuous duty at rated force and power
- Fixing Position: Can be mounted in any orientation
- Terminal Box: Spacious, easy for electrical connections
- Bearings: Precision bearings designed for heavy load support
- Drive Shaft: Oversized, heat-treated steel shaft for maximum durability
Key Features & Benefits
Heavy-Duty Build
Manufactured using robust materials to withstand harsh industrial conditions.
Energy Efficient Design
High torque output with low power consumption—cutting down operational costs.
Versatile Utility
Perfect for feeders, screens, conveyors, and material separation systems.
Low Noise, Smooth Operation
Engineered to minimize noise and mechanical vibration.
Quick Installation & Service
Center flange makes setup easy, with minimal maintenance required.
Custom Configurations Available
Choose from a range of voltages, power ratings, and speed options.
Applications
- Vibrating Screens
- Vibratory Feeders
- Conveyor Systems
- Material Separation Units
- Pharmaceutical Machinery
- Food Processing Equipment
Need Help Selecting the Right Motor?
We’ll help you choose the best-fit AC brake motor for your industrial application.
