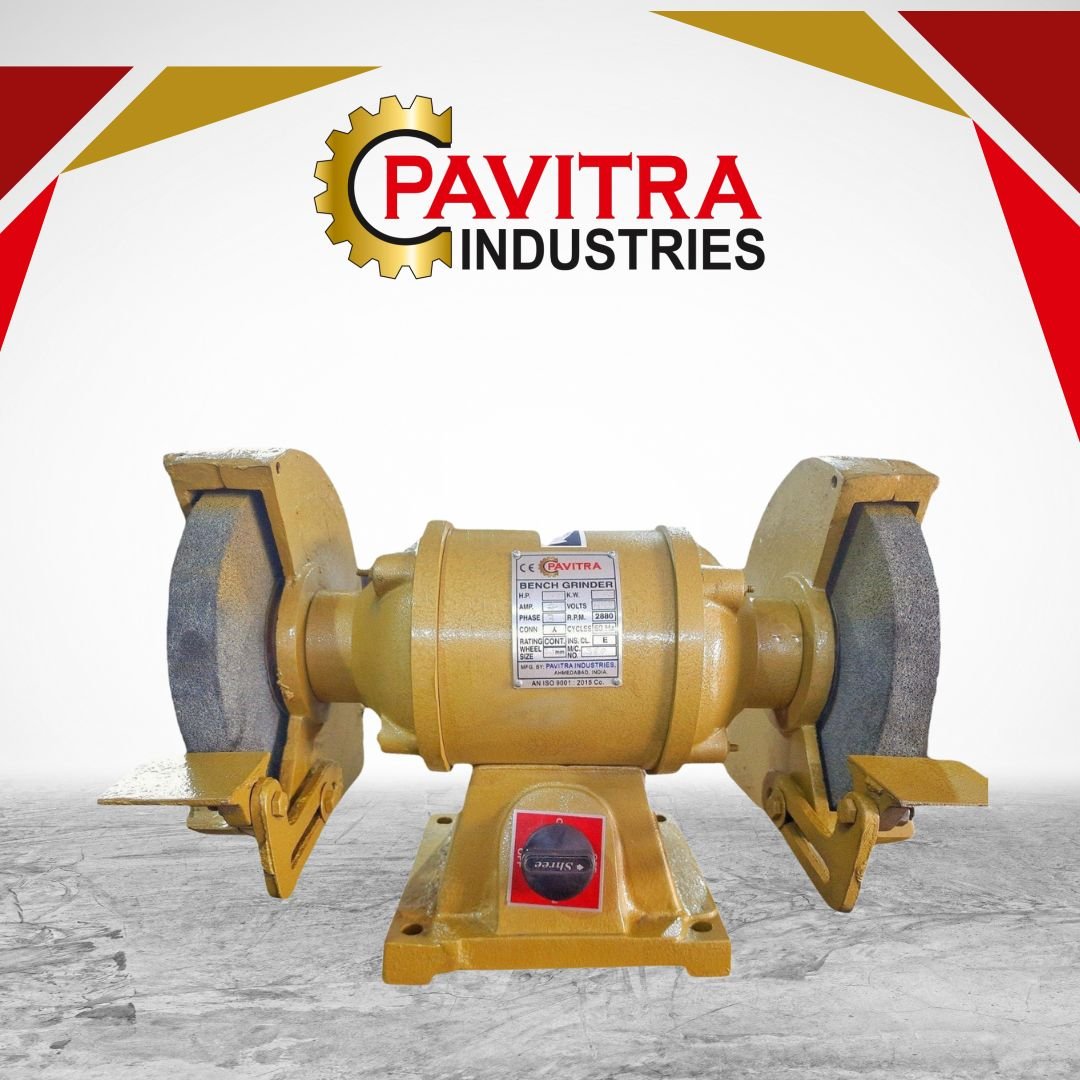

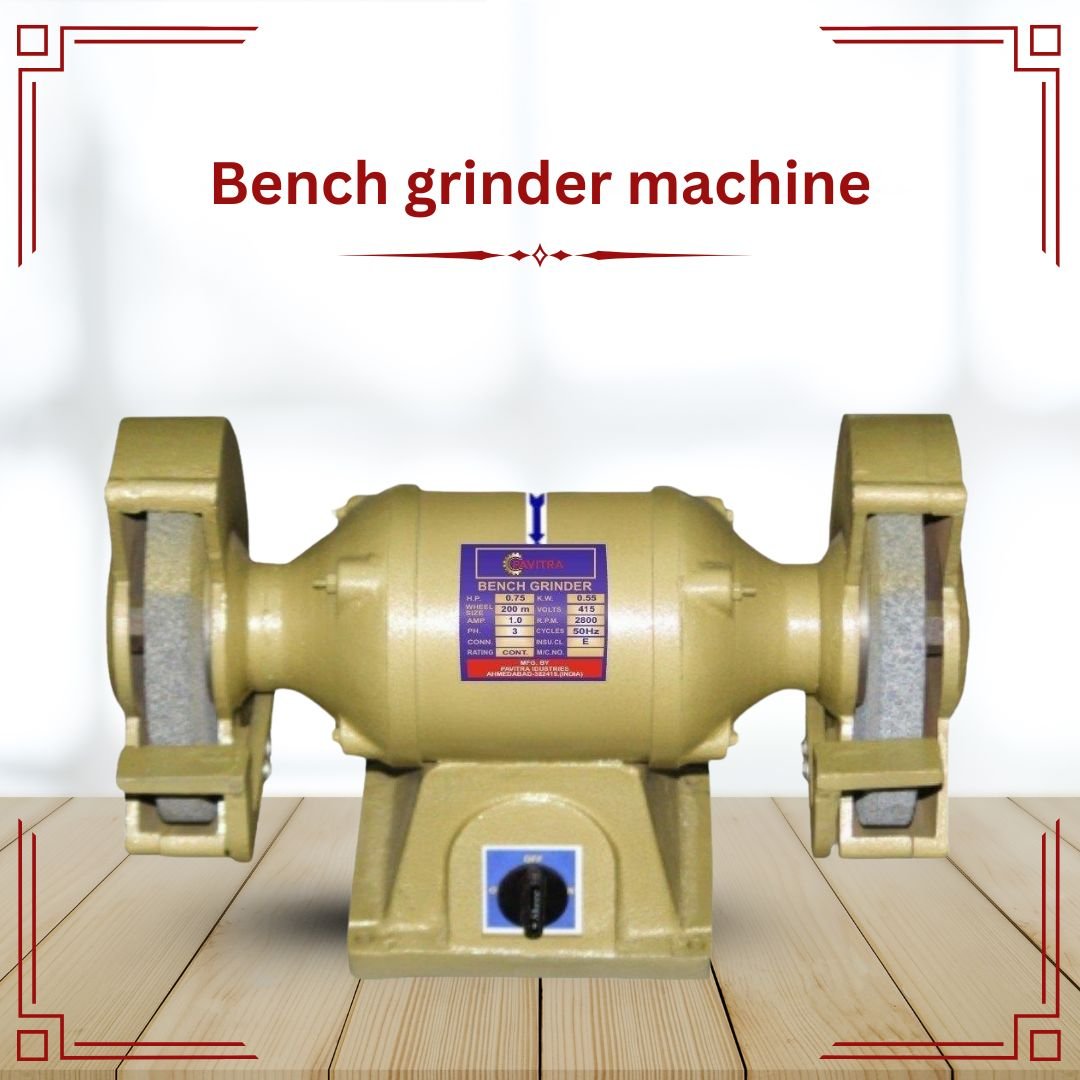

- Bench grinder machine
Bench & Pedestal Grinder Series (0.12 HP–5 HP)
Engineered for workshop and industrial use, the series offers:
| Bench Grinder Series – Electrical & Mechanical Specifications | |
|---|---|
| Power Range | 0.12 HP (0.09 kW) to 5 HP (3.7 kW) |
| RPM | Bench units: 2,800–3,000 RPM Pedestal/Heavy-duty units: 1,500–3,000 RPM |
| Wheel Sizes | 100 mm (4″) to 355 mm (14″) |
| Phase Options | Single-phase (230–240 V) for ≤1 HP Three-phase (415–440 V) for ≥2 HP units |
| Category | Bench Grinders – 2,800–3,000 RPM |
Bench Grinders – 2,800–3,000 RPM
| Model | Power (kW / HP) | Phase / Voltage | Wheel Size (mm) | Shaft Ø (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PI‑BG‑012 | 0.09 kW / 0.12 HP | 1Ø (230 V) | 100 × 13 | 12.7 | ~9 |
| PI‑BG‑025 | 0.18 kW / 0.25 HP | 1Ø / 3Ø | 100 × 20 | 12.7 | 13 |
| PI‑BG‑050 | 0.37 kW / 0.50 HP | 1Ø / 3Ø | 150–200 | 15.8 | 22–26 |
| PI‑BG‑075 | 0.55 kW / 0.75 HP | 1Ø / 3Ø | 200 × 25 | 19.0 | 35 |
| PI‑BG‑100 | 0.75 kW / 1.00 HP | 1Ø / 3Ø | 250 × 25 | 19.0 | 45 |
Pedestal & Heavy-Duty Grinders – 1,500–3,000 RPM
| Model | Power (kW / HP) | Wheel Size (mm) | RPM | Weight (kg) |
|---|---|---|---|---|
| PI‑PG‑200 | 1.50 kW / 2 HP | 300 × 40 / 38 | 1,500 / 2,800 | 60–80 |
| PI‑PG‑300 | 2.20 kW / 3 HP | 300 × 40 | 1,500 / 2,800 | 80–120 |
| PI‑PG‑500 | 3.70 kW / 5 HP | 355 × 76 | 1,500 / 1,800 | 150–270 |
Core Features
- Heavy-duty cast-iron/steel body for maximal stability and vibration reduction
- Dynamically balanced rotors using stamped/die-cast technology for smoother operation
- 63-series dust-proof bearings: dual-bearing for ≤1 HP; four-bearing for ≥2 HP units
- Double-sided wheel mounts, with adjustable tool rests and spark guards
- Phase/voltage flexibility: single-phase (230–240 V) or three-phase (415–440 V)
- Compatible with pedestal stands, coolant systems, LED lights, safety shields, and electronic brakes
Maintenance & Warranty
- 12‑month limited warranty
- Models conform to Indian standards (IS‑325, IS‑2223) and insulated to Class B/F motor quality
- Load- and balance-tested before shipment
- Recommend periodic dressing of grinding wheels and ensuring proper grounding and overload protection
Ideal Applications
Fabrication shops, tool rooms, automotive & metal workshops, foundries, sharpening & polishing environments
Ideal for sharpening drills, chisels, lawn mower blades; deburring welds and castings; precision shaping and finishing
