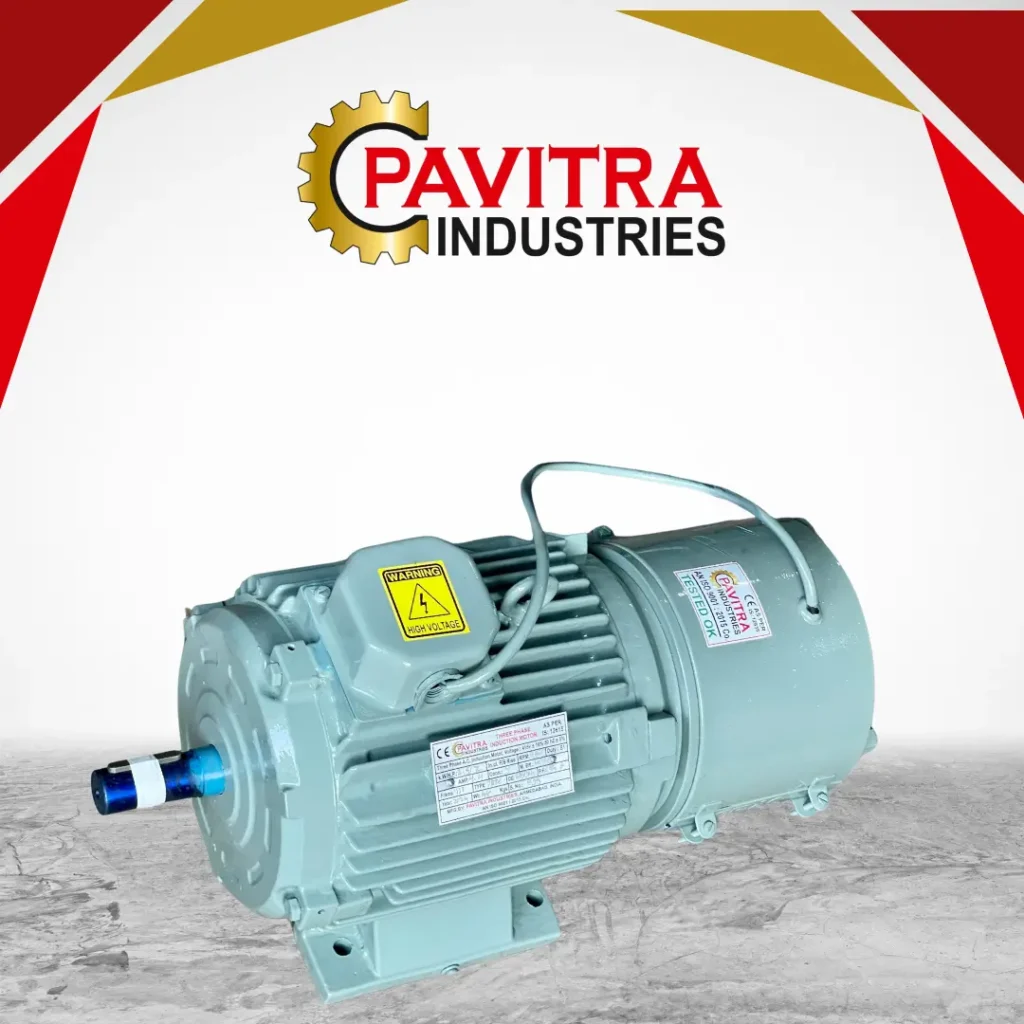

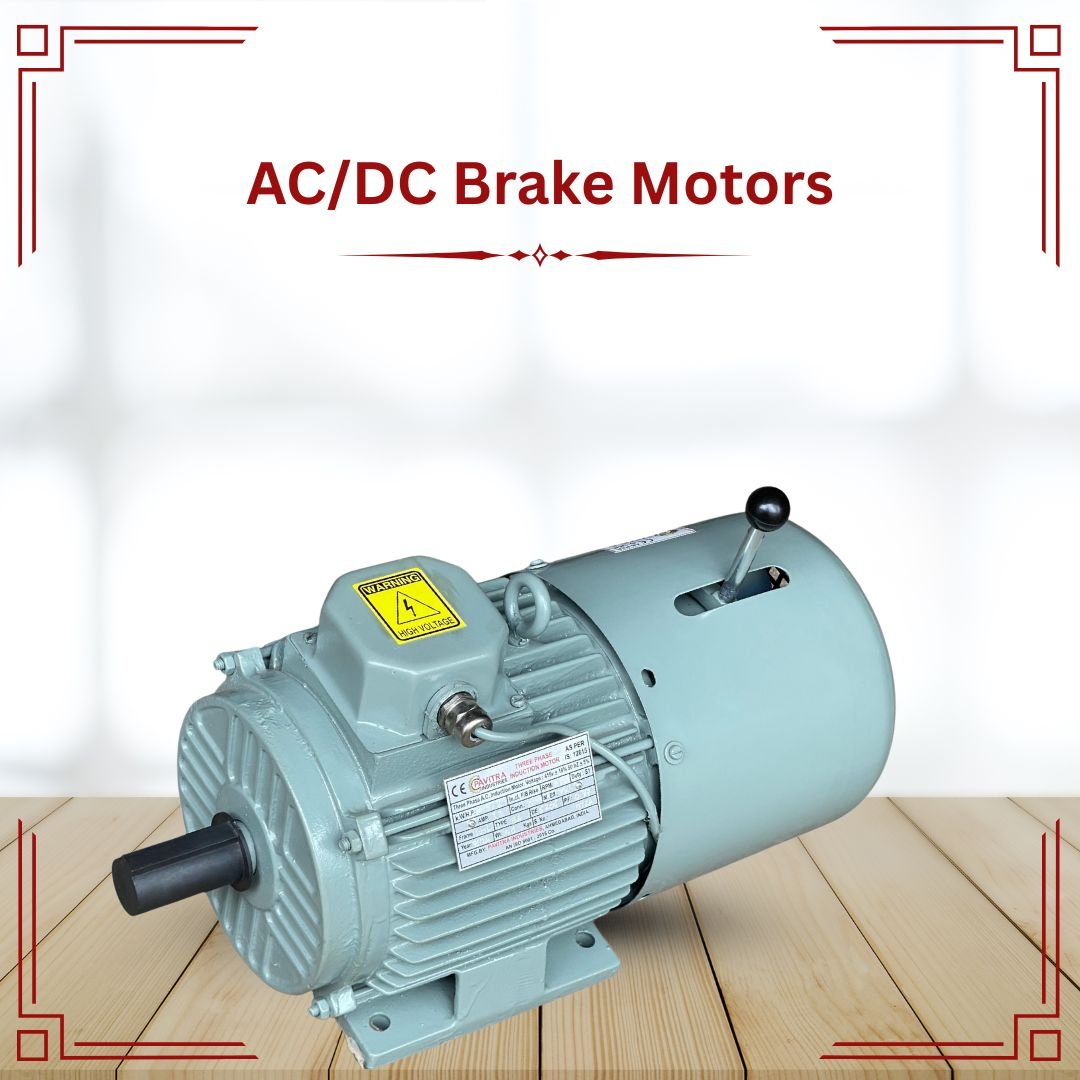

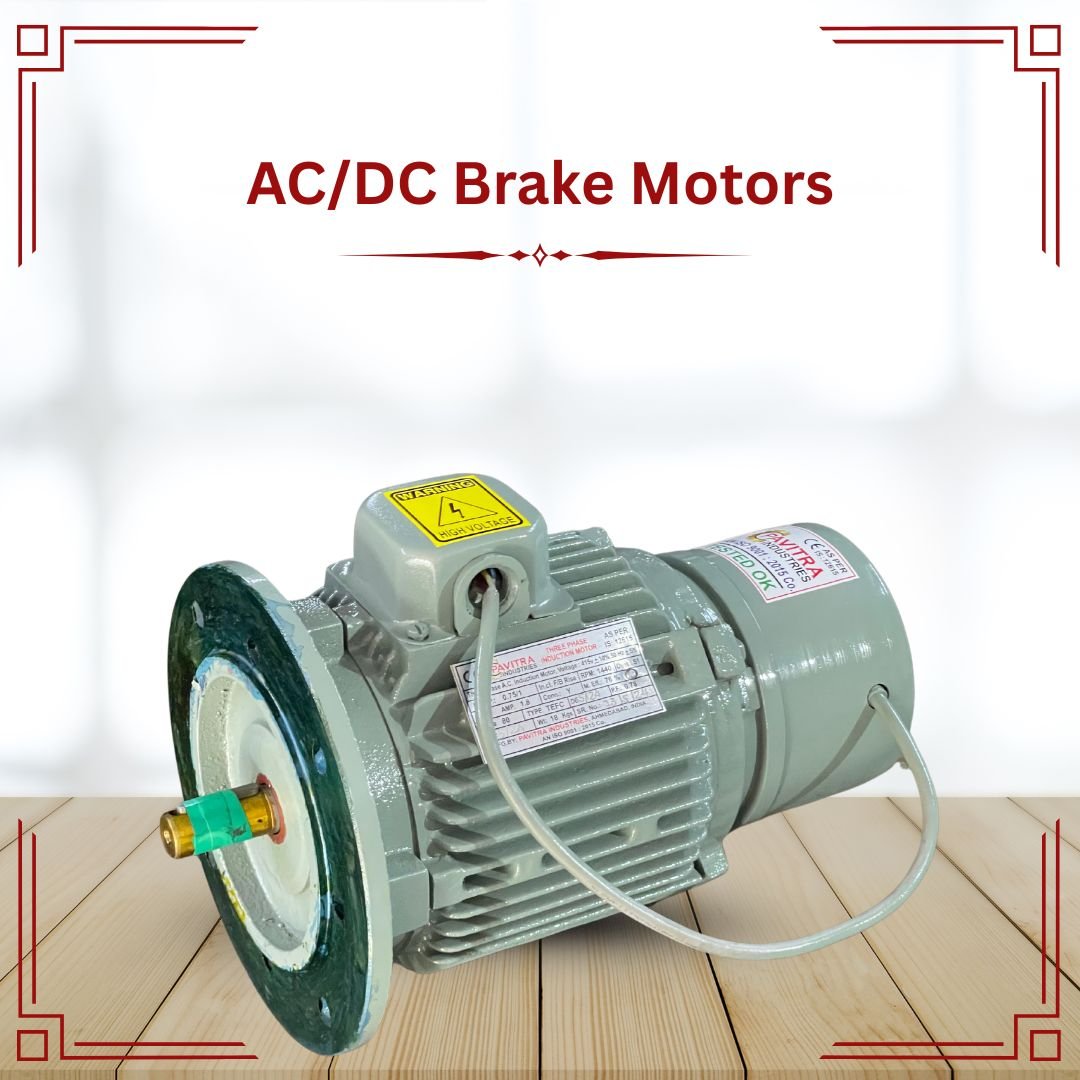

AC/DC Brake Motors

Reliable. Efficient. Built for Performance. With Enhanced Control & Safety

its commitment to quality and performance by introducing a new line of AC and DC Brake Motors, designed to meet the growing demand for applications requiring precise stopping, holding, and enhanced safety. Available across a wide power range, these motors combine our proven efficiency with integrated braking solutions

Technical Specifications

Specification	Details
Power Range	0.25 HP to 30 HP (0.18 kW to ~22 kW)
Speeds (RPM)	750 / 1000 / 1500 / 3000
Insulation Class	F (Standard), H (Optional)
Enclosure	TEFC (Totally Enclosed Fan Cooled)
Protection Class	IP55 (Standard), IP65 (Optional)
Duty Cycle	S1 (Continuous Duty), S4 (Intermittent with braking)
Frame Sizes	63 to 200 (or higher for 30 HP)
Mounting Options	B3 (Foot), B5 (Flange), B14 (Face), B35 (Foot cum Flange)

Range Available

Voltage:
– Single Phase: 230V ±10%, 50 Hz (primarily for lower HP)
– Three Phase: 415V ±10%, 50 Hz (for higher HP, typically from 3 HP upwards)
– Custom Voltages: 110V/220V/240V/415V (On Request)

Brake Type:
– AC Electromagnetic Brake: Powered by AC supply.
– DC Electromagnetic Brake: Powered by DC supply (internal/external rectifier for AC input)

Key Features of AC Brake Motor

Integrated Braking System

Available with both AC and DC operated electromagnetic brakes for immediate and controlled stopping.

Energy Efficient Design

Optimized for reduced power consumption.

Fail-Safe Operation

Brakes engage automatically upon power failure, enhancing safety.

Rugged Construction

Built to withstand demanding industrial environments.

VFD Compatibility

Designed for use with Variable Frequency Drives for precise speed and torque control.

Smooth & Silent Operation

Engineered for low noise and vibration, maintaining our standard motor characteristics.

Energy Efficient

Optimized for performance with minimal power usage.

Minimal Maintenance

Robust construction with reliable braking mechanisms.

Thermal Overload Protection

Standard for motor longevity and safety.

Customization Options:
– Custom Shafts
– Specific Voltage Requirements (e.g., 110V/220V/240V, 415V 3-Phase)
– Various Mounting Options (B3, B5, B14, B35)
– Optional IP55/IP65 Protection Class for environmental resistance.

Applications

Need Help Selecting the Right Motor?

We’ll help you choose the best-fit AC brake motor for your industrial application.
